Wood Tongue Depressor Making Machine|Wood Dental Spatula Making Machine With Factory Price

  • Material: wood
  • Capacity: 320,000pieces/every 8 hours
  • Loading Port: Qingdao Port
  • Description:Multi-functional Wood Tongue Depressor Making Machine consists of 6-8 units of machines, with capacity 320,000pieces/every 8 hours,can also be customized.
Features

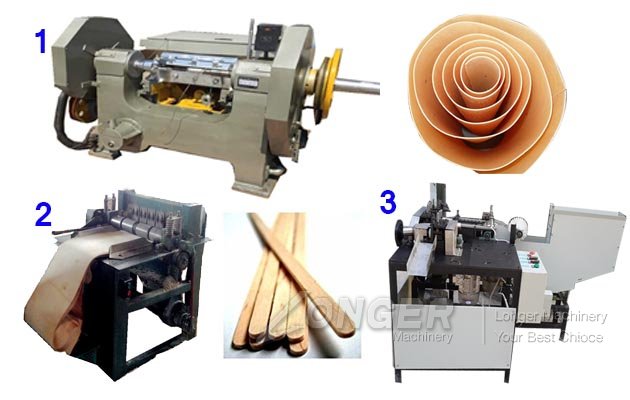

The total set of Wood Tongue Depressor Making Machine|Wood Dental Spatula Making Machine consists of:
1.Wood Log Cooking Machine: Frist, you should cook the log up to 80o~100oC for 3-4 hours.
2.Rotary Cutting Machine:Cut the log into thin board then put in to Carve Cutting Machine
3.Carve Cutting Machine:Put the board which processed by Rotary Cutting Machine into this machine,then you can get the finished product with different sizes,by changing the moulds in the machine.
4.For the Chamfering Machine:It is used for embellishing the finished product line.
5.For the Selecting Machine:It can select the finished product which from Carve Cutting Machine,if the finished product is curving,thin,and also remove the dust in the products.
6.For the Bundling Machine:It can bunld the finished product to a bould of 50 pcs
7.For the Knife Sharpening Machine:It is used for sharpening the knifes in the machine.
Wood Tongue Depressor Machine
We also have Ice Cream Wood Stick Production Line.

Technical Data
Name Power(kw) Weight(kg) Outside dimension(m)
1.Rotary Cutting machine 10.87 2000 3.0*2.0*1.5
2.Carve Cutting machine 2.2 400 1.2*1.2*1.3
3.Rotary Drying Machine 11 3500 4.5*2.2*2.2
4.Chamfering Machine 1.5 300 1.2*0.9*1.0
5.Selecting Machine 0.37 176 3.6*0.8*1.2
6.Branding Machine(Double Sides) 0.37 230 3.03*0.7*1.1
7.Bundling Machine 0.55 260 2.3*0.7*1.6
8.Knife Grinding Machine
9.Blade(Carve Cutting Machine)
